Mounting Bracket & Flange

Mounting Bracket & Flange
Remark Mounting Holes PCD (holes) Spigot Size Offset (mm)

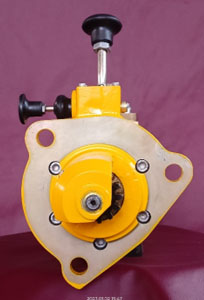

SAE 2 & 3

 Only long Nose - 45mm to 47mm pinion at rest 120* 146.05 92.05mm 0
-2.1
3
0
-2.1

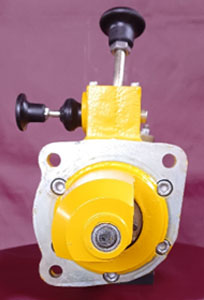

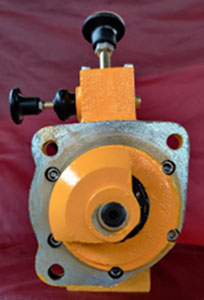

SAE 1

 Short Nose - 25mm to 27mm pinion at rest 90* 127 88.9mm 0
1.5
3.2

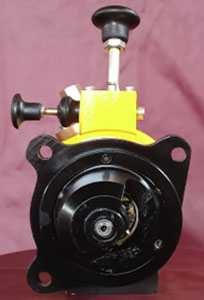

SAE 1

 long Nose - 45mm to 47mm pinion at rest 90* 127 88.9mm 0
3
0
3

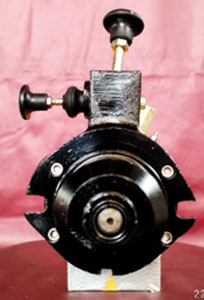

SAE 4

 Short Nose - 20mm to 27mm pinion at rest 180* 105 76mm & 82.4mm 0
1.5
2.5
3
5
6
8

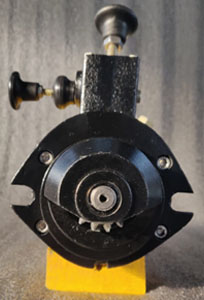

SAE 4

 long Nose - 45mm to 47mm pinion at rest (also 32mm) 180* 105 82.4mm 0
3
6.3

SAE 1

 Split Type only SHORT Nose 90* and 180*
180*
180* 		120, 127 , 105 & 146.05
127
146.05
120
120 		95, 92.05, 88.9 & 82
88.9
109.8
95
95 		0
6
0
0
0
3
3
0
