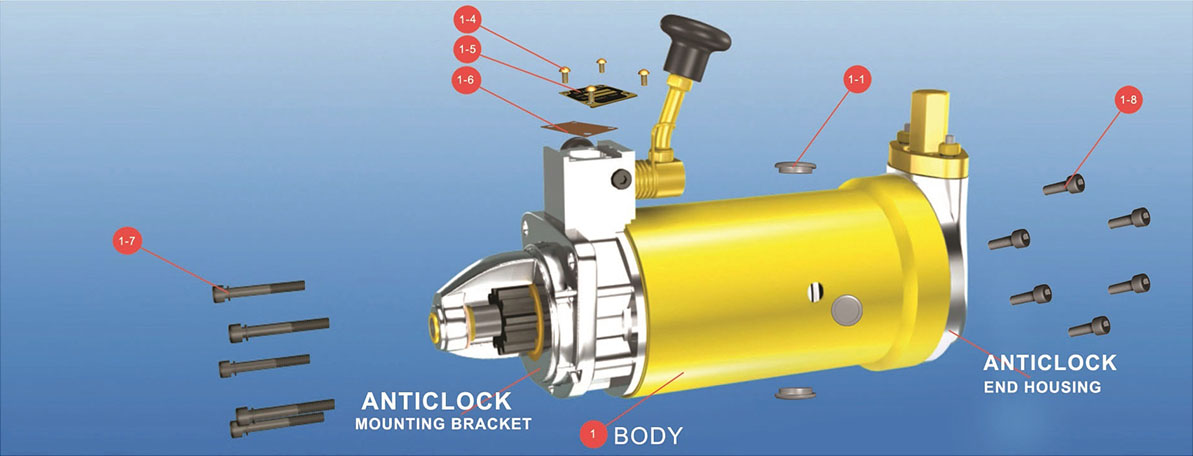

PART NUMBER NAME

• 1 BODY
• 1-1 WINDOW(3nos)
• 1-4 NAME PLATE SCREW (4nos)
• 1-5 NAME PLATE
• 1-6 GASKET
• 1-7 MOUNTING BOLT (5nos)
• 1-8 END HOUSING BOLT (6nos)

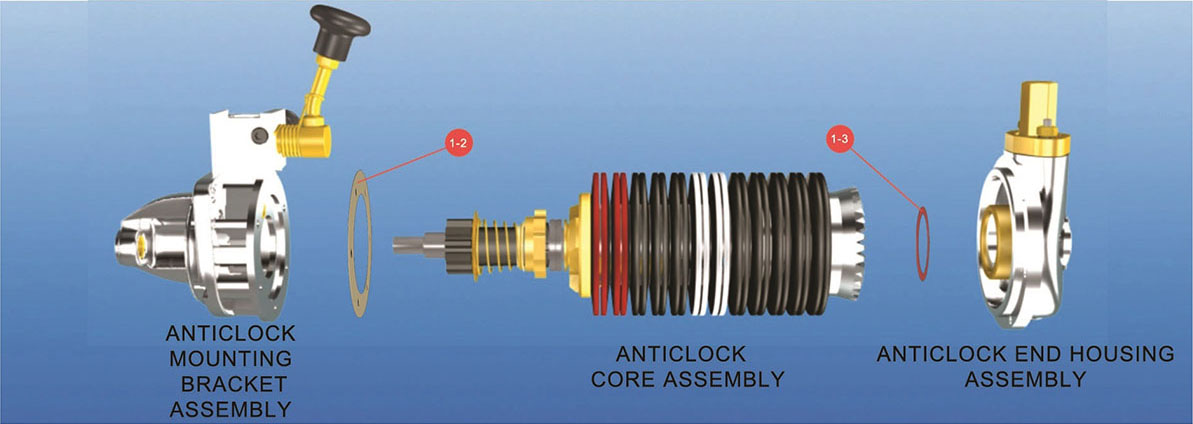

• 1-2 BODY SHIM
• 1-3 SHIM FOR SLEEVE

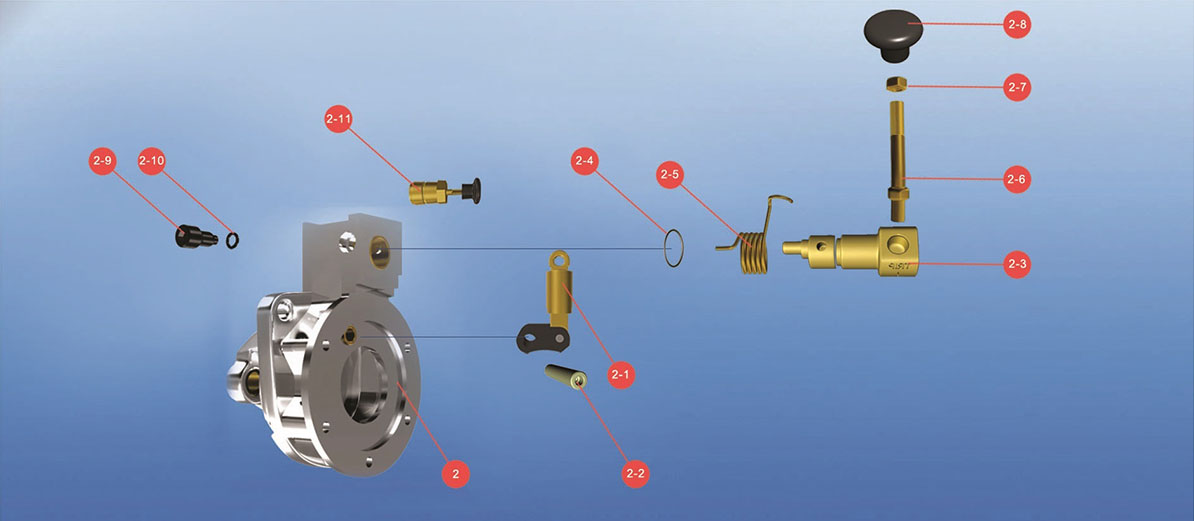

Anticlock mounting bracket assembly

• AC 2 MOUNTING BRACKET (ANTICLOCK)
• AC 2-1 LOCK & TRIP LINK (ANTICLOCK)
• 2-2 SWIVEL PIN
• AC 2-3 RELEASE SHAFT (ANTICLOCK)
• 2-4 RELEASE SHAFT 'O' RING
• AC 2-5 RETURN SPRING (ANTICLOCK)
• 2-6 RELEASE LEVER
• 2-7 RELEASE LEVER NUT (2nos)
• 2-8 RELEASE LEVER HAND GRIP
• 2-9 STOP SCREW
• 2-10 STOP SCREW WASHER
• 2-11 RESET PLUNGER ASSY

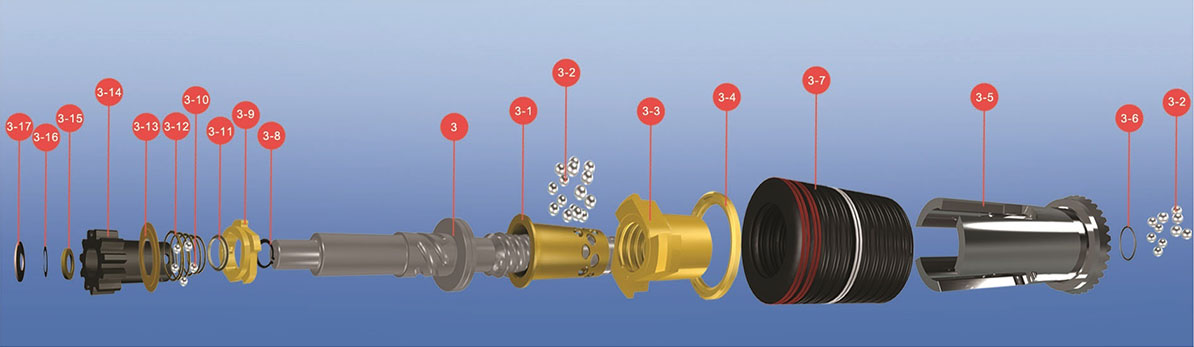

Anticlock core assembly

• AC 3 DRIVE SHAFT (ANTICLOCK)
• AC 3-1 CAGE (ANTICLOCK)
• 3-2 BALL (26nos)
• AC 3-3 DRIVE NUT (ANTICLOCK)
• 3-4 DRIVE RING
• AC 3-5 DRIVE SLEEVE (ANTICLOCK)
• 3-6 'O' RING
• 3-7 DISC SPRING (24nos)
• 3-8 CIRCLIP
• AC 3-9 DRIVE RATCHET (ANTICLOCK)
• 3-10 PINION BALL (5nos)
• 3-11 SPRING LOCATING DISC
• 3-12 RETURN SPRING
• 3-13 SPRING LOCATOR
• 3-14 DRIVE PINION
• 3-15 THRUST WASHER
• 3-16 SHIM
• 3-17 BELLEVILLE WASHER

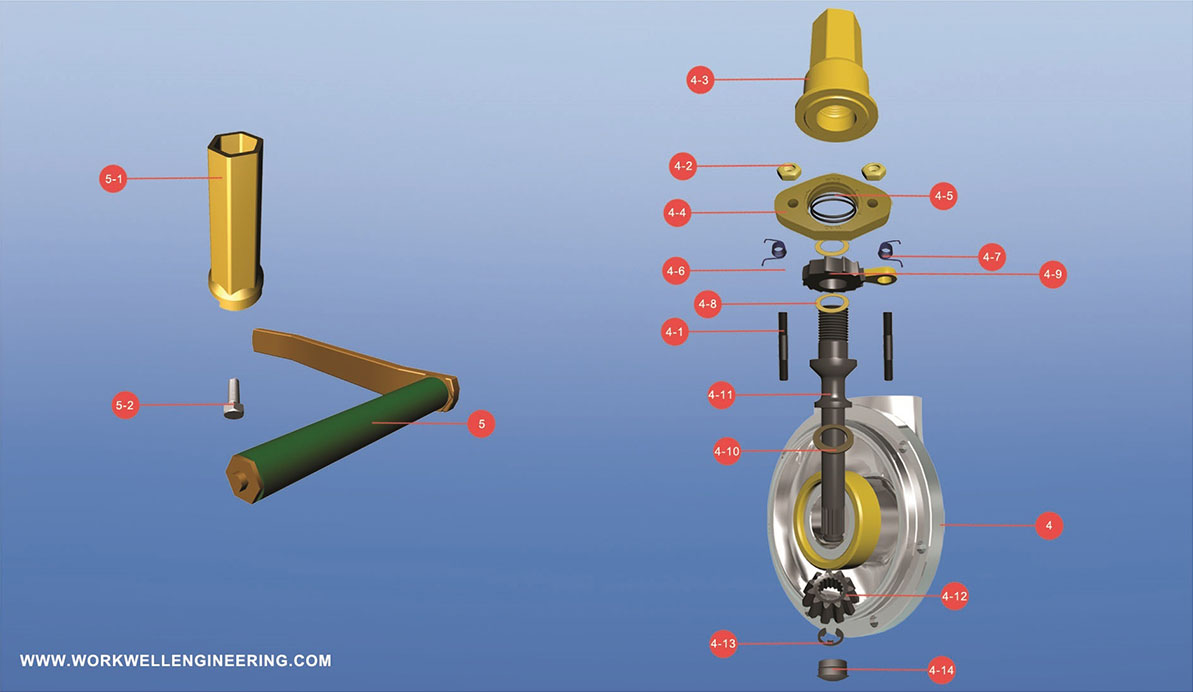

Anticlock end housing assembly

• AC 4 END HOUSING (ANTICLOCK)
• 4-1 STUD (2nos)
• 4-2 NUT (2nos)
• 4-3 INPUT ADAPTOR
• 4-4 SUPPORT PLATE
• 4-5 SUPPORT PLATE 0 RING (2nos)
• 4-6 CATCH (2nos)
• 4-7 CATCH SPRING (2nos)
• 4-8 FRICTION WASHER (2nos)
• 4-9 INPUT RATCHET
• AC 4-10 THRUST WASHER (ANTICLOCK)
• AC 4-11 INPUT SHAFT (ANTICLOCK)
• 4-12 INPUT GEAR
• AC 4-13 E- CLIP (ANTICLOCK)
• 4-14 END HOUSING PLUG

Cranking handle assembly

• 5 CRANKING HANDLE
• 5-1 HEX TUBE
• 5-2 CRANKING HANDLE BOLT
